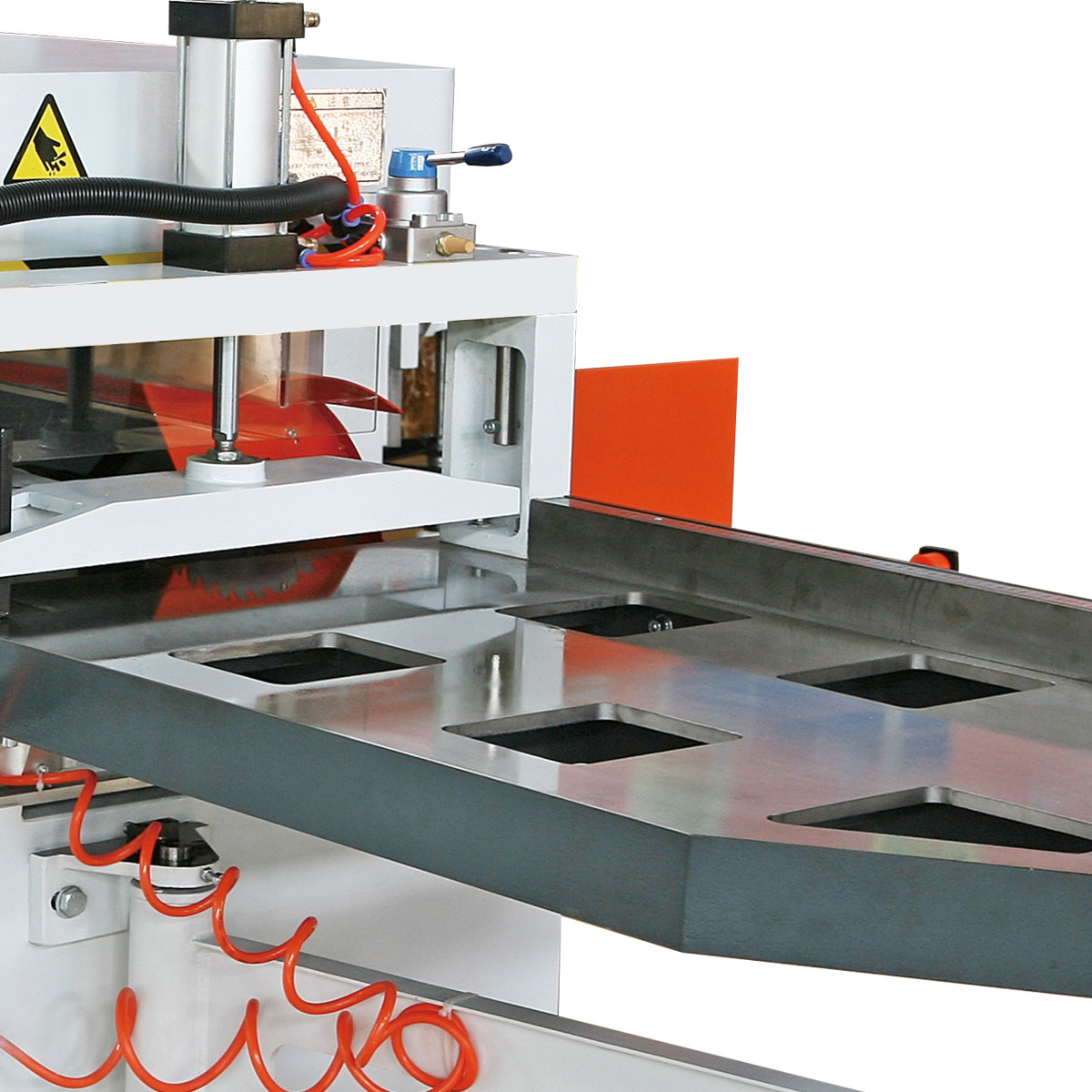

Pneumatic Clamping Convenient efficiency
|

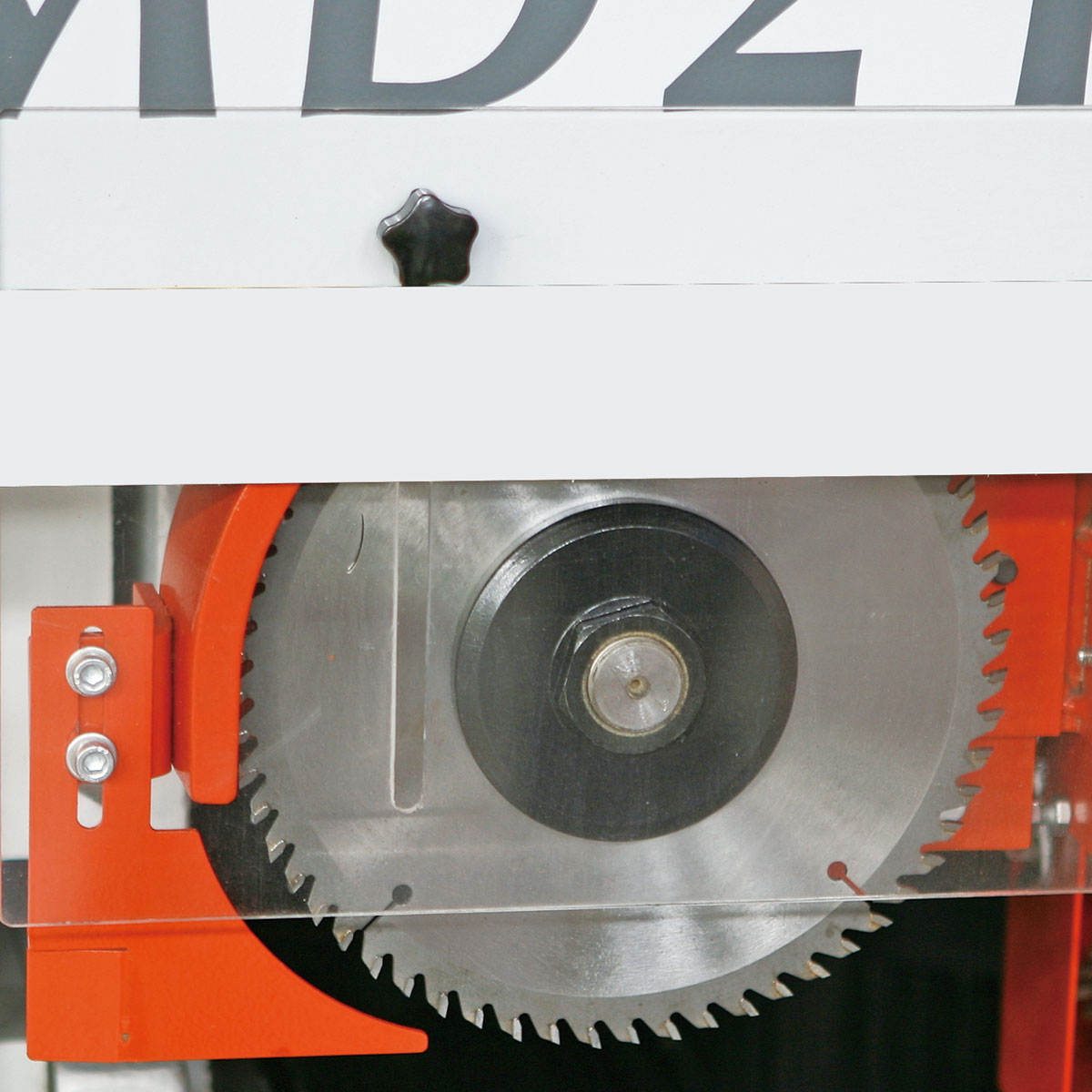

Sawing layout smoothly
|
|
|

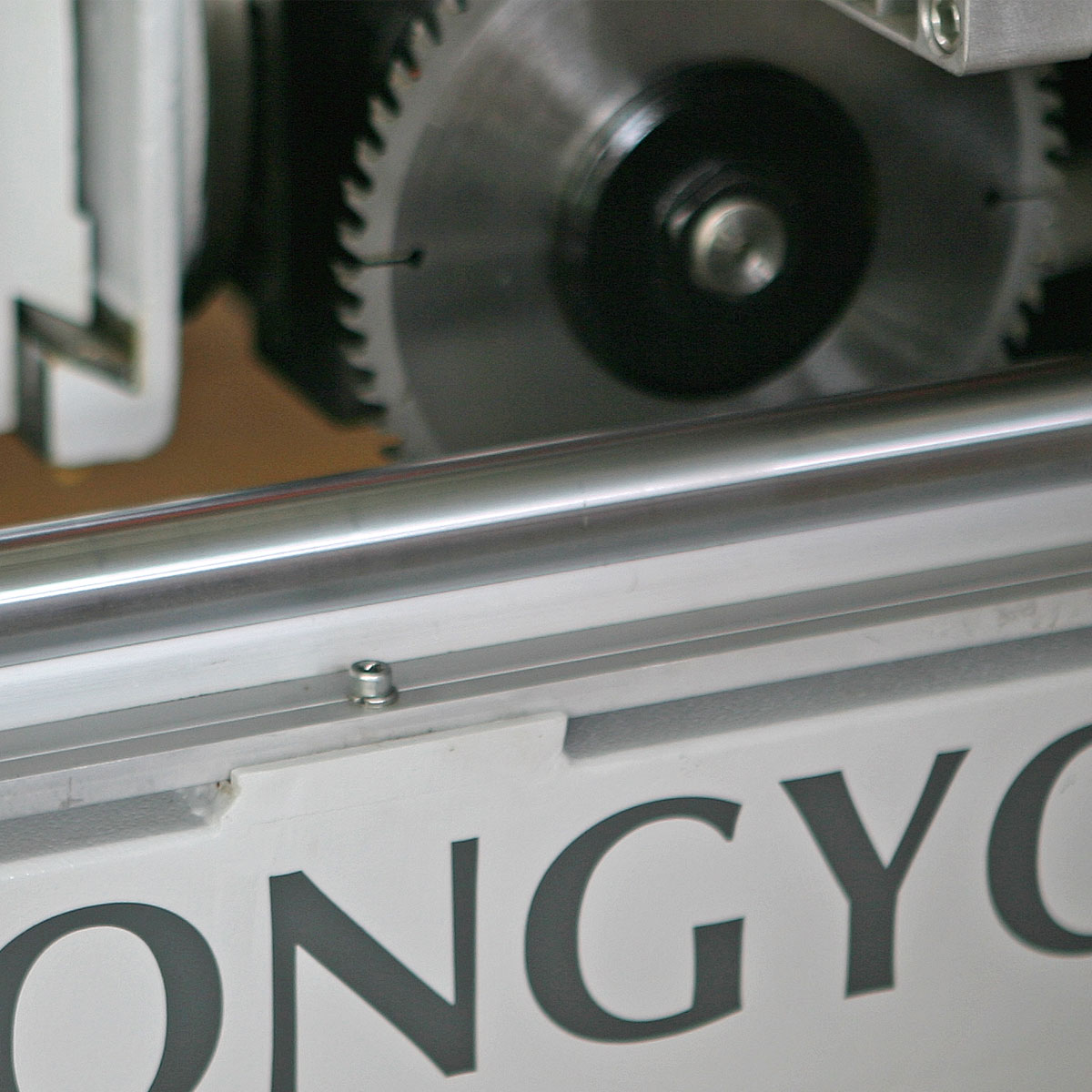

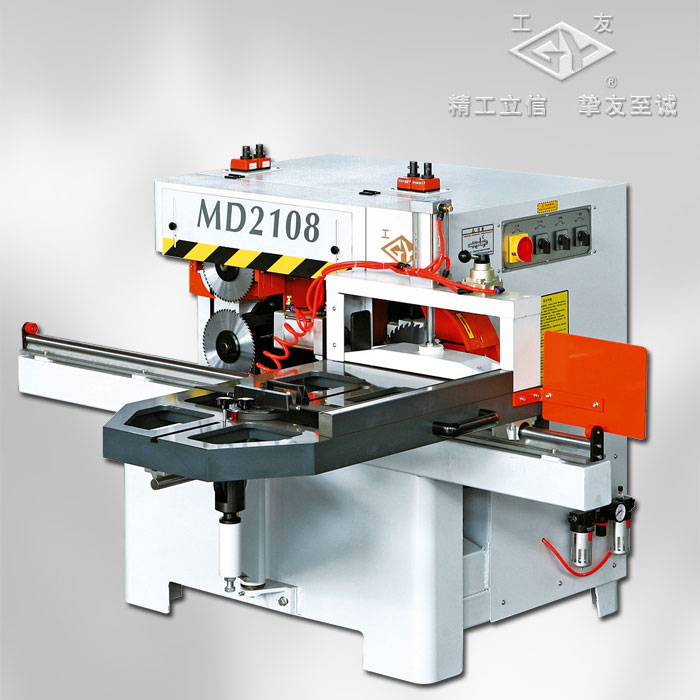

| Linear guide machining precision is higher | Vertical Single Spindle Mortising machine |
| Technical Specification | Unit | MD2108 |
| Max. mortise length | mm | 80 |
| Max.working thickness | mm | 100 |
| Table size | mm | 990×600 |
|
Main spindle speed |
r/min | 5000 |

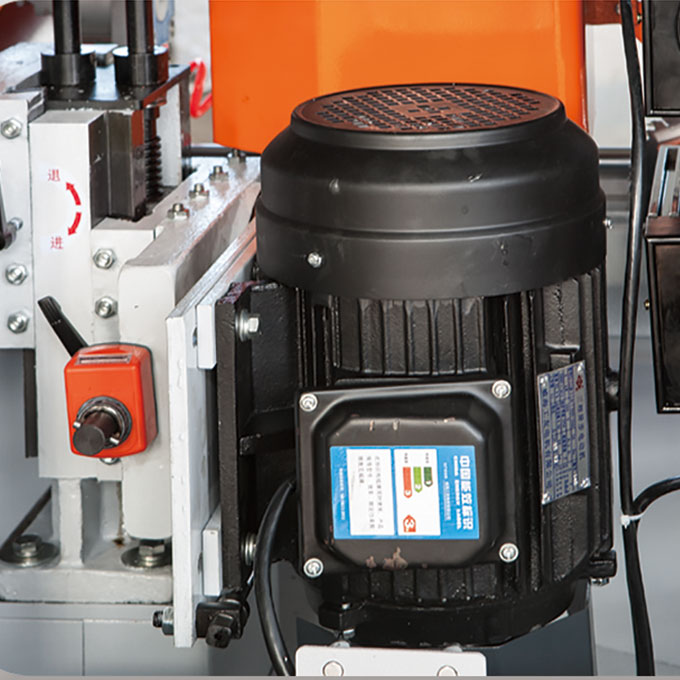

| Motor power | kw | 9.2 |
| Power | V/HZ/P | 380/50/3 |
| Overall dimensions | mm | 2030×1690×1230 |
| Net.weight | kg | 650 |
