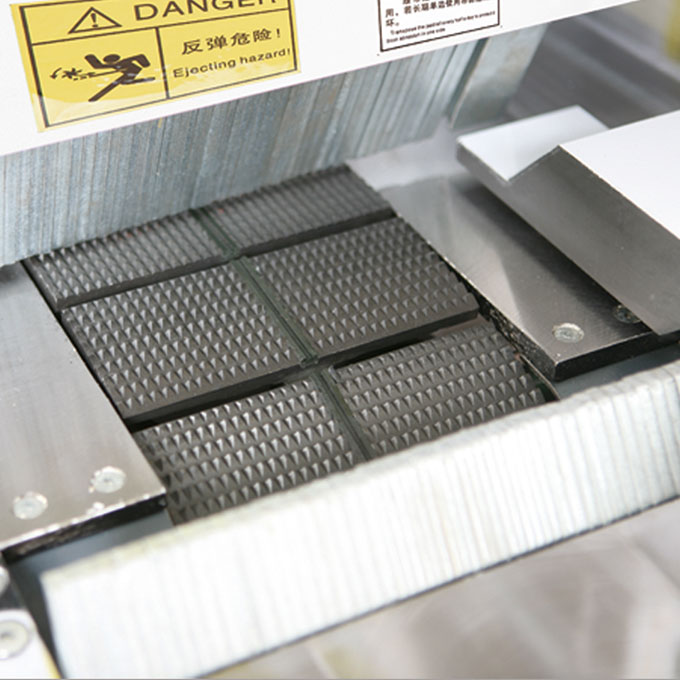

Super mesa widened chain plate
|
Four groups of protection operation safety
|
 |
 |
|

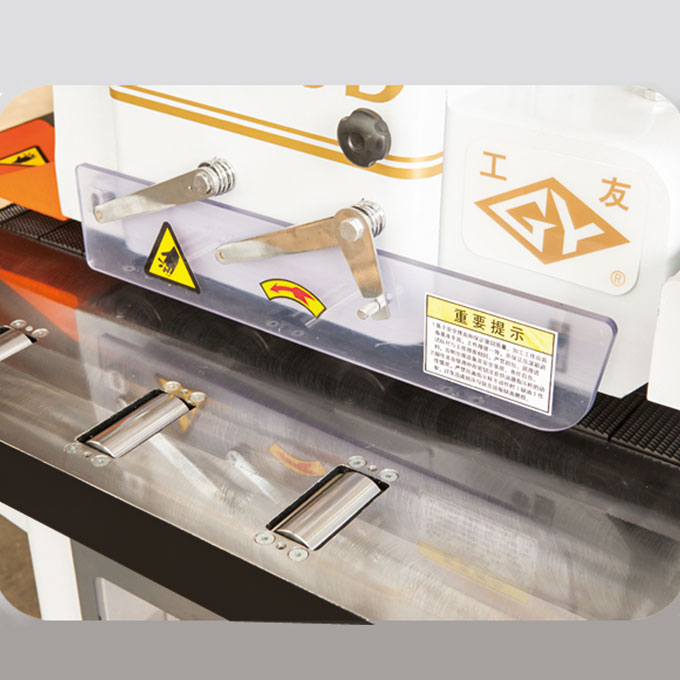

Auxiliary roller precision is higher
Quenching rail longer life,Standard motor power is strong
|
0.10/2000mm Trimming precision |
| Technical Specification | Unit | MJ153D | MJ154D |
| Min. sawing length | mm | 230 | 260 |
| Sawing thickness | mm | 10-85 | 10-125 |
| Throat depth | mm | 460 | 610 |
| Saw blade diameter | mm | ?250-305 | ?305-405 |
| Spindle diameter | mm | ?25.4 | ?25.4 |
| Saw spindle speed | r/min | 4000 | 3500 |
| Main motor power | kW | 7.5 | 11 |
| Feeding motor power | kW | 1.5 | 2.2 |
| Feeding speed | m/min | 12.5/16/19.5/24 | 6~25 |
| Fixed table size | mm | 1100×1600 | 1230×1750 |
| Overall dimensions | mm | 1800×1100×1356 | 2100×1400×1500 |
| Net.weight | kg | 980 | 1200 |
